SHIELD PCIE 5.0 GPU ANGLE ADAPTER-180 DEGREES STD

SHIELD GPU Angle Adapter – 180° STD

Designed for cleaner GPU power routing when a 180° U-turn path fits your graphics-card connector and case layout. This STD-orientation 12V-2x6 / 12VHPWR adapter can help route the power connection back around the GPU edge while reducing cable projection toward the case side panel.

Before You Buy

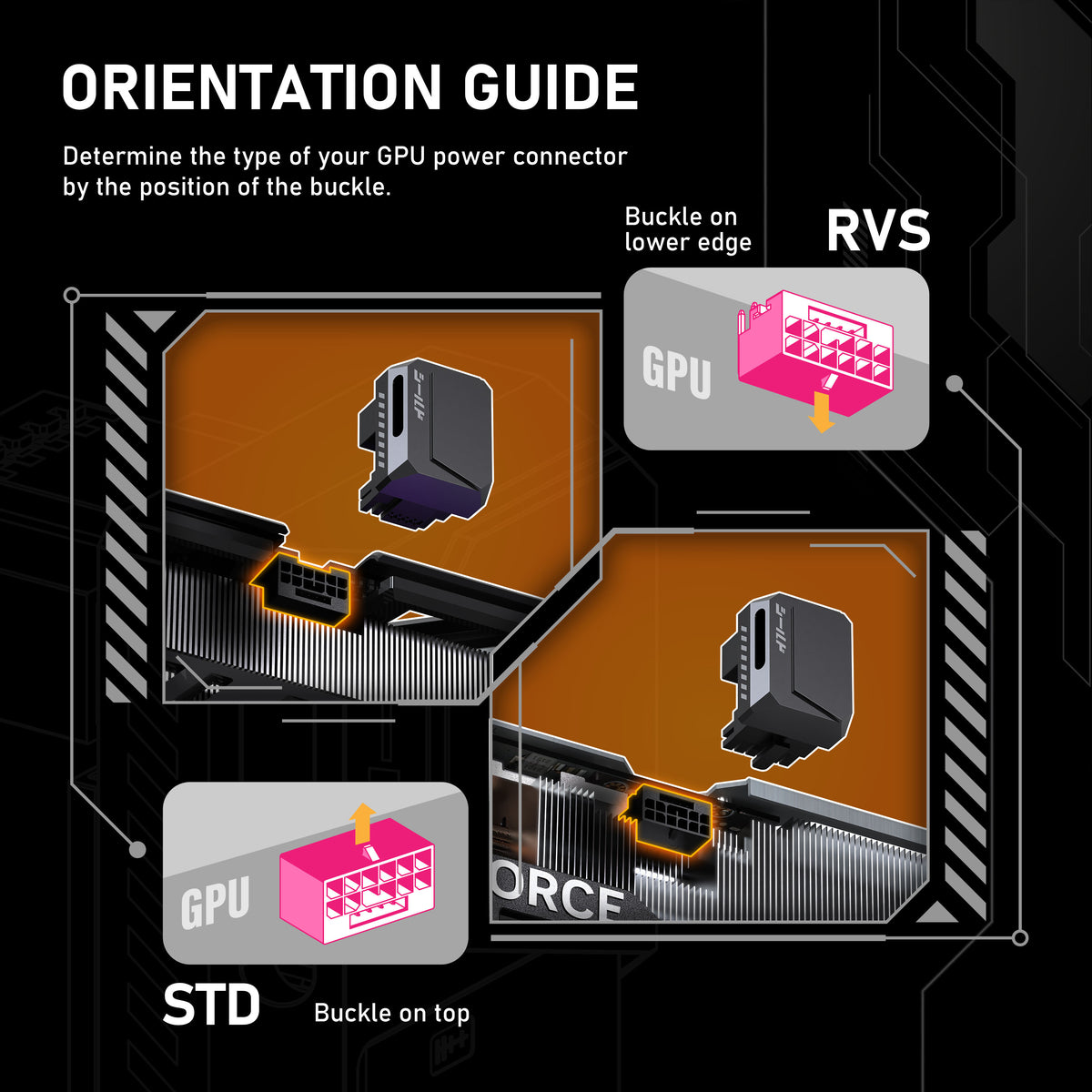

Orientation: This is the STD (Standard) version. STD and RVS are not interchangeable. Check the direction of the GPU power socket before ordering.
Connector: 12V-2x6 / 12VHPWR GPU power connection.
Angle: 180° U-turn routing.

Compatibility Guidance

Compatibility depends on the exact GPU model, power-socket orientation, GPU shroud/backplate clearance, case side-panel clearance, and cable-routing space. Do not choose only by GPU brand.

Important RTX 5090 notice: This SHIELD angle adapter model is not intended for RTX 5090. For RTX 5090 builds, choose only EZDIY-FAB products explicitly labeled RTX 5090 Compatible.

Installation Checklist

Turn off the PC and disconnect AC power before installation.
Confirm the STD orientation matches the GPU socket.
Insert the connector fully and evenly; do not force it if alignment is incorrect.
Confirm the adapter and cable are not under sideways pressure from the case panel.
After installation, visually confirm the connector remains fully seated.
