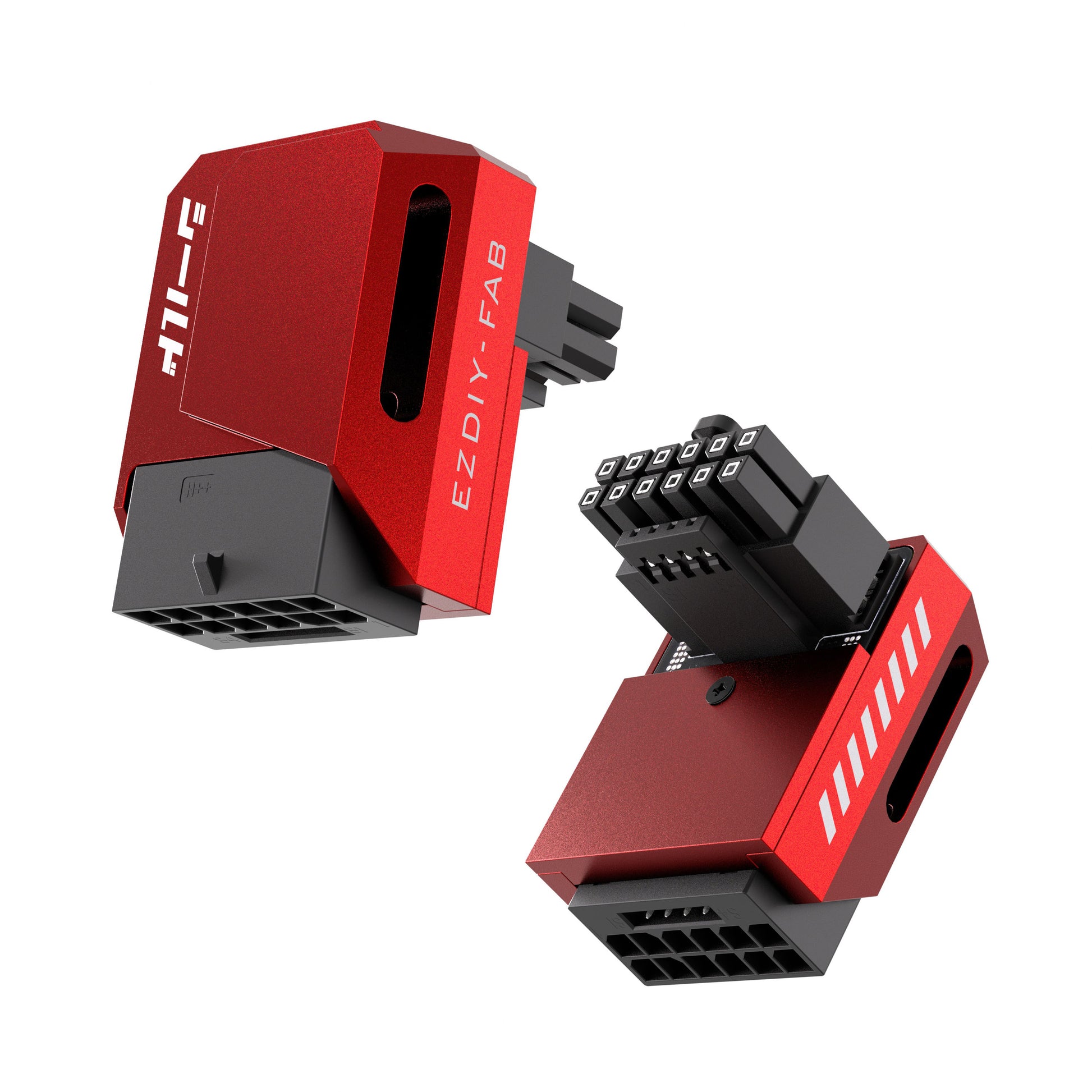

SHIELD PCIE 5.0 GPU WINKELADAPTER-90 Grad STD

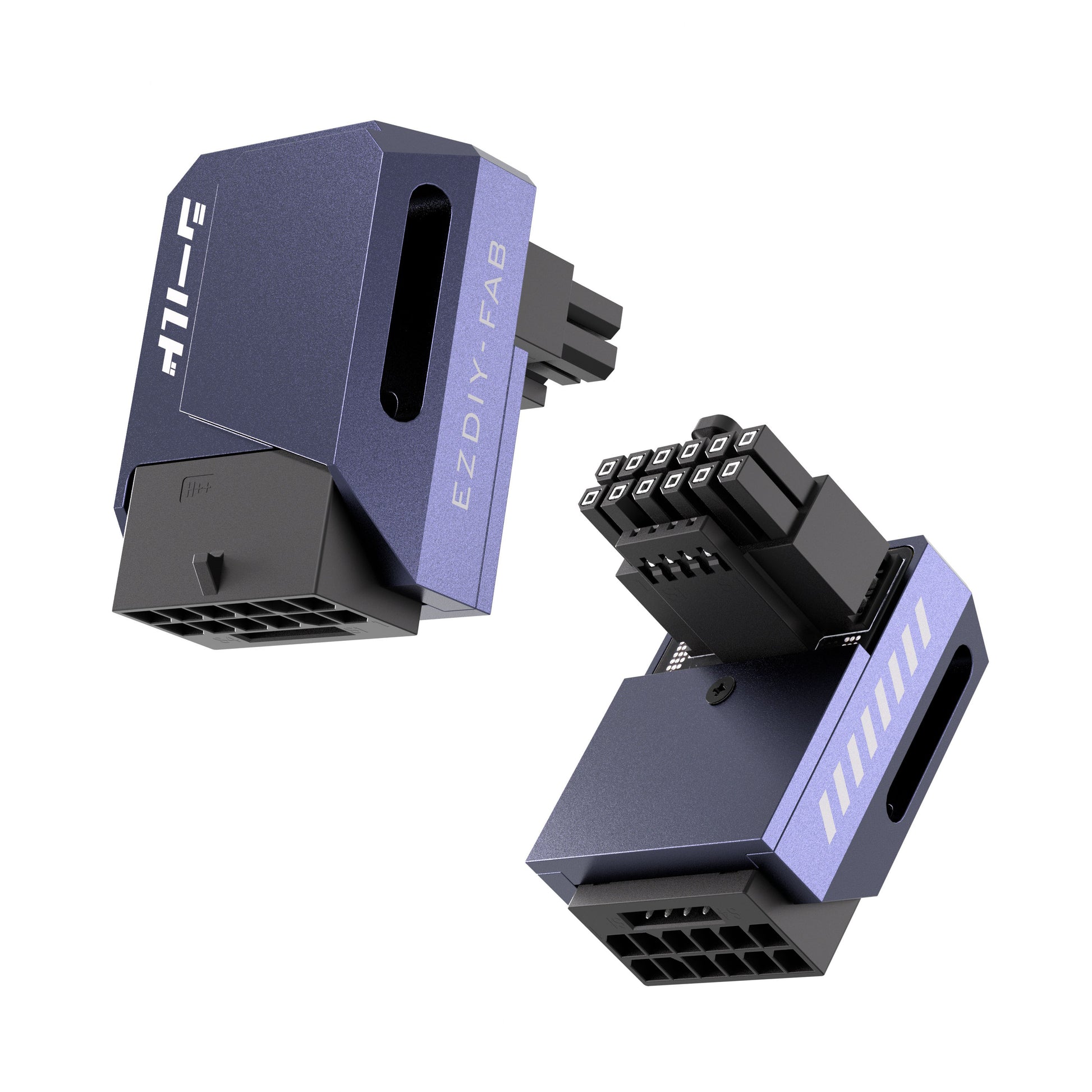

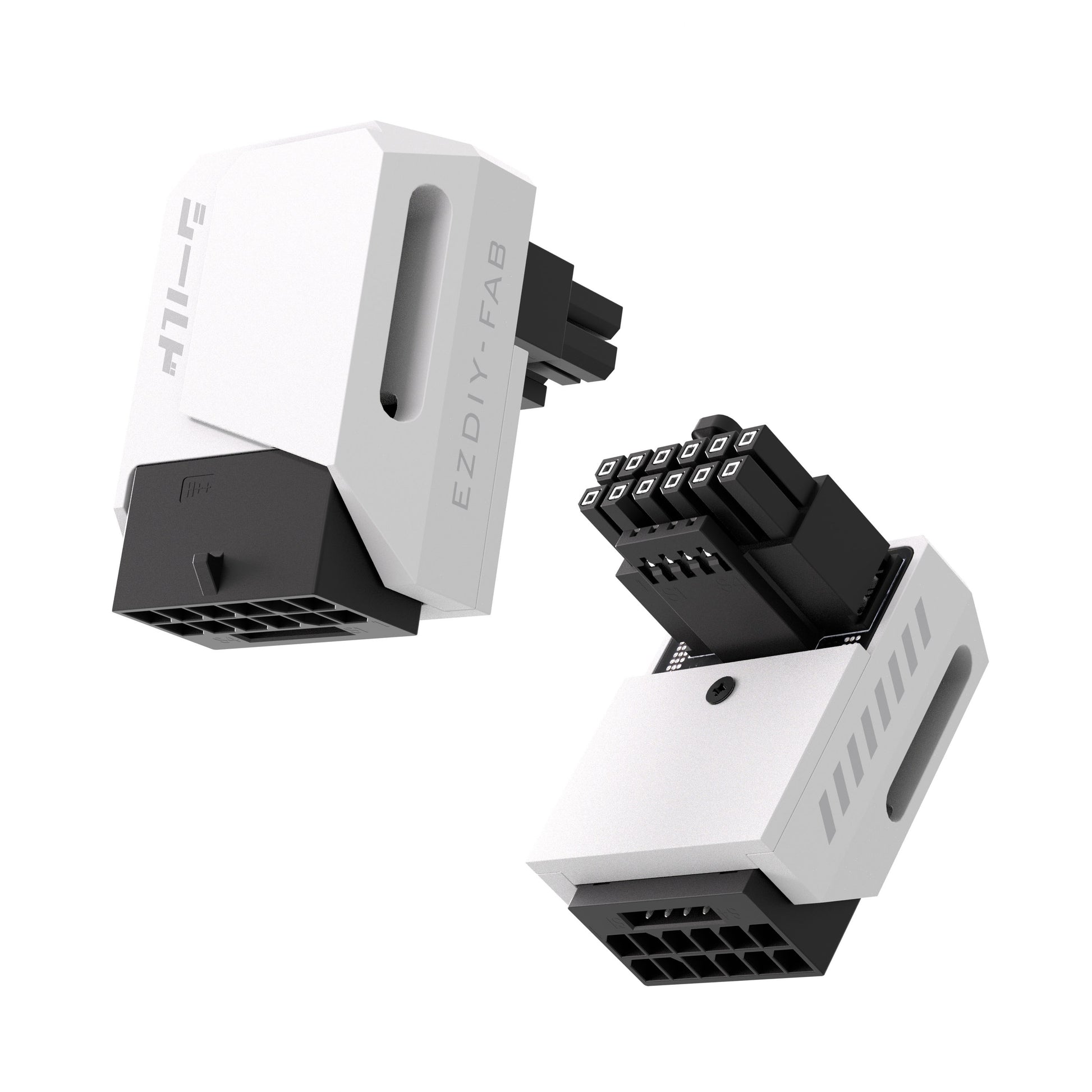

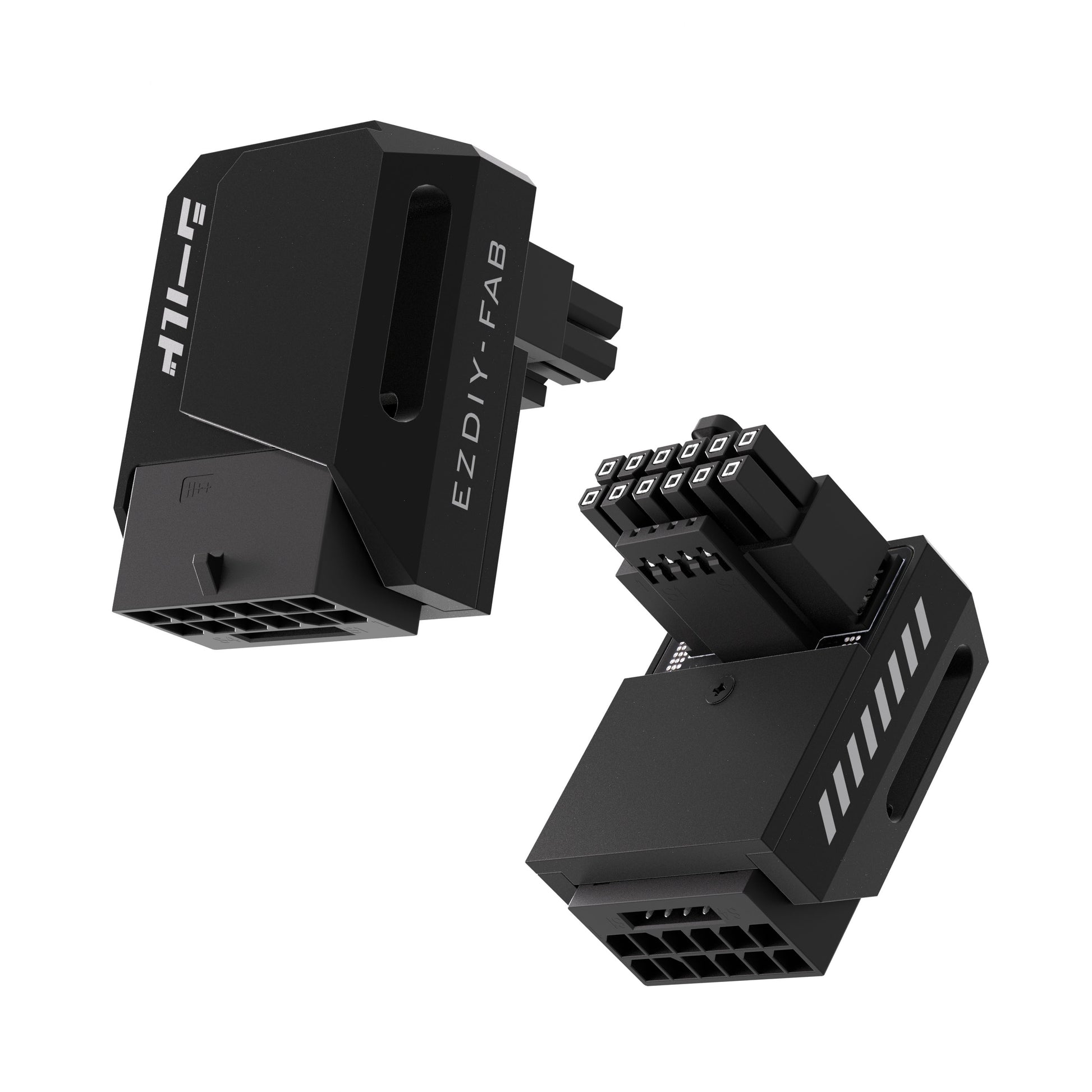

SHIELD GPU Angle Adapter – 90° STD

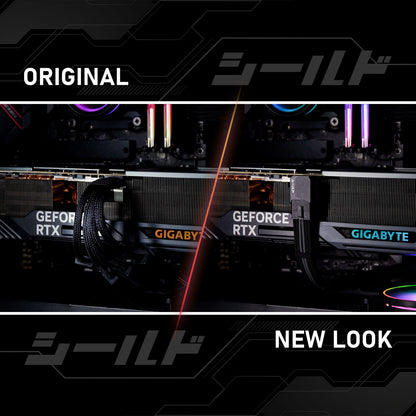

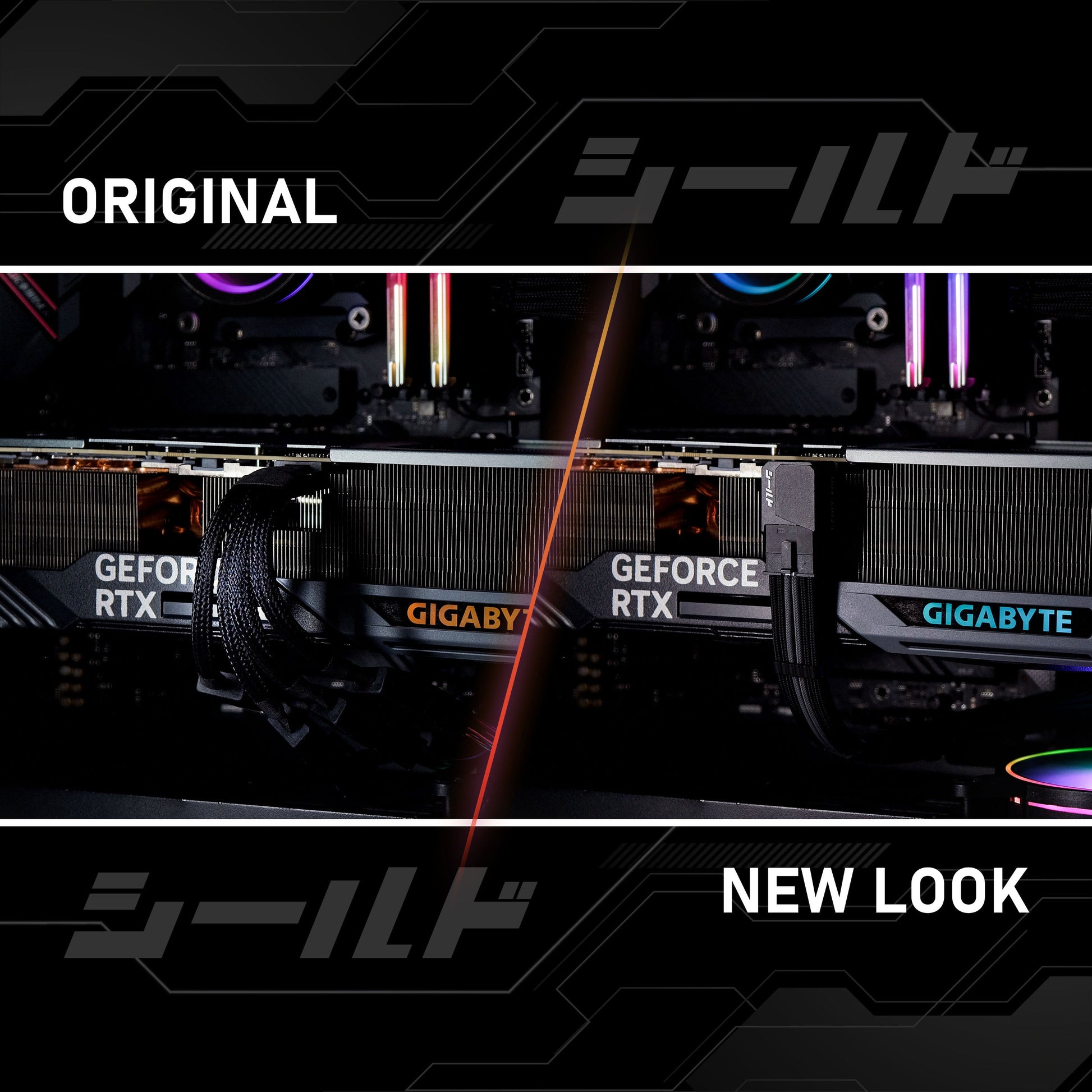

Designed for a cleaner right-angle GPU power route when the STD connector orientation matches your graphics card. This 90° 12V-2x6 / 12VHPWR adapter redirects the power connection sideways and can reduce cable projection toward the case side panel in compatible layouts.

Before You Buy

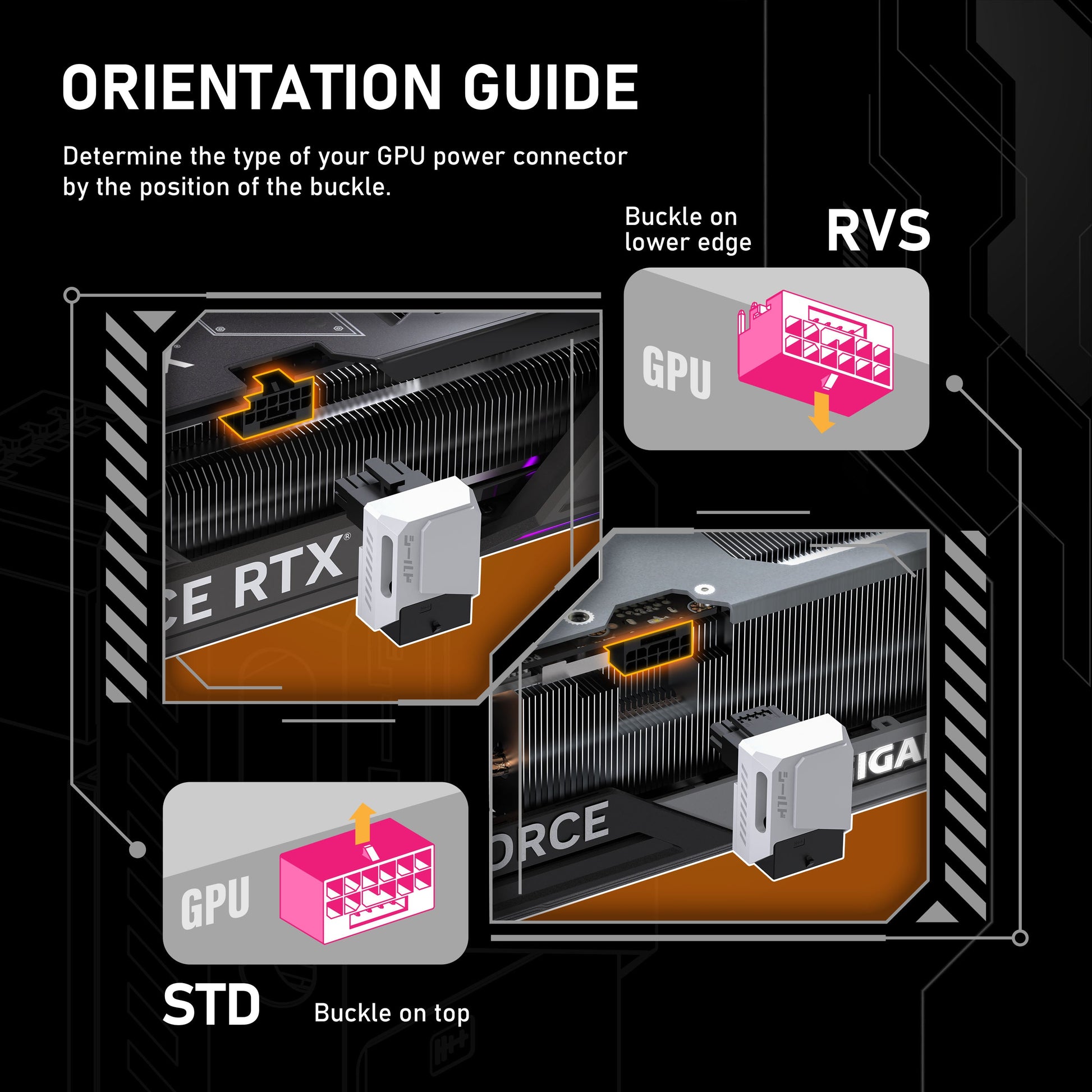

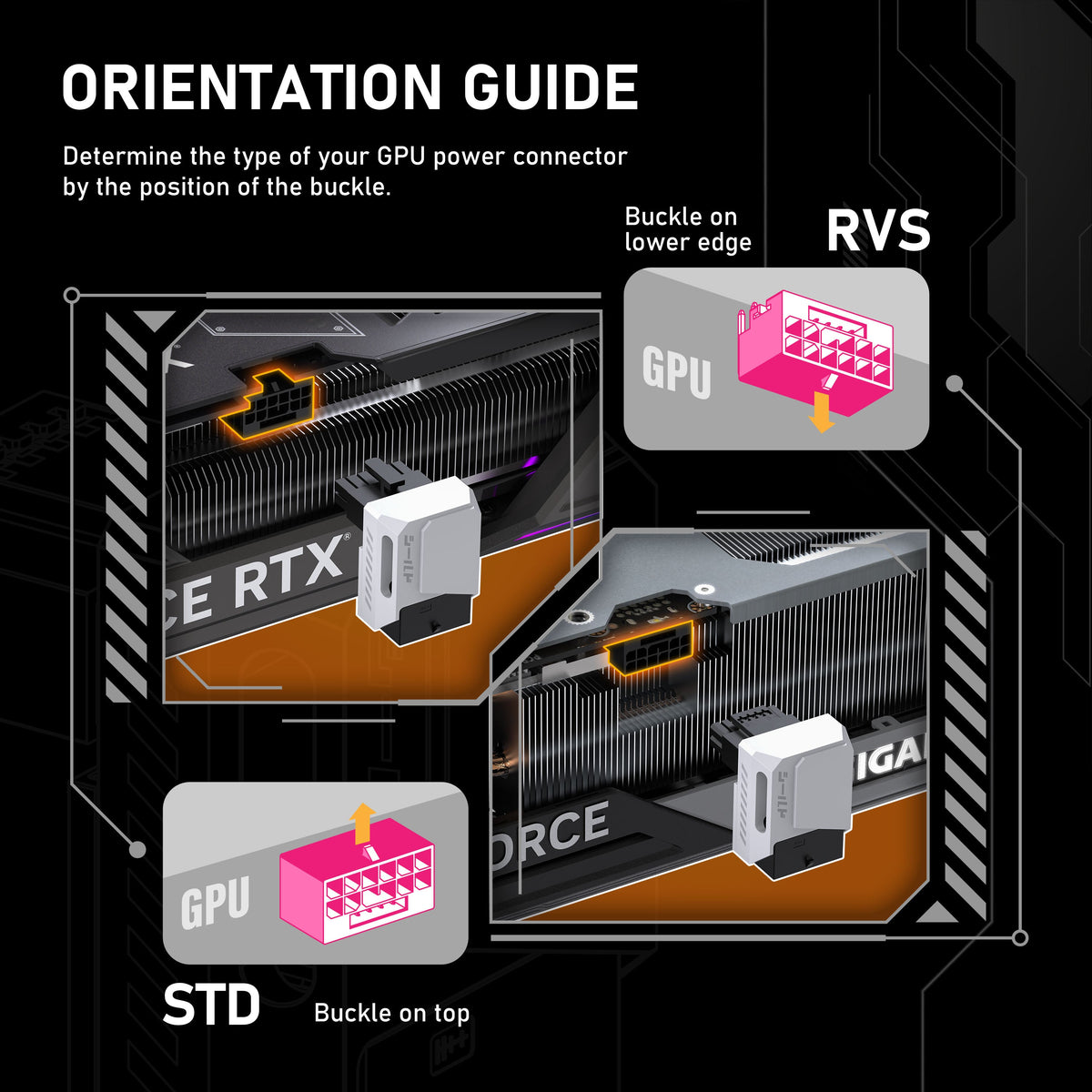

Orientation: This is the STD (Standard) version. STD and RVS are not interchangeable. Check the direction of the GPU power socket before ordering.

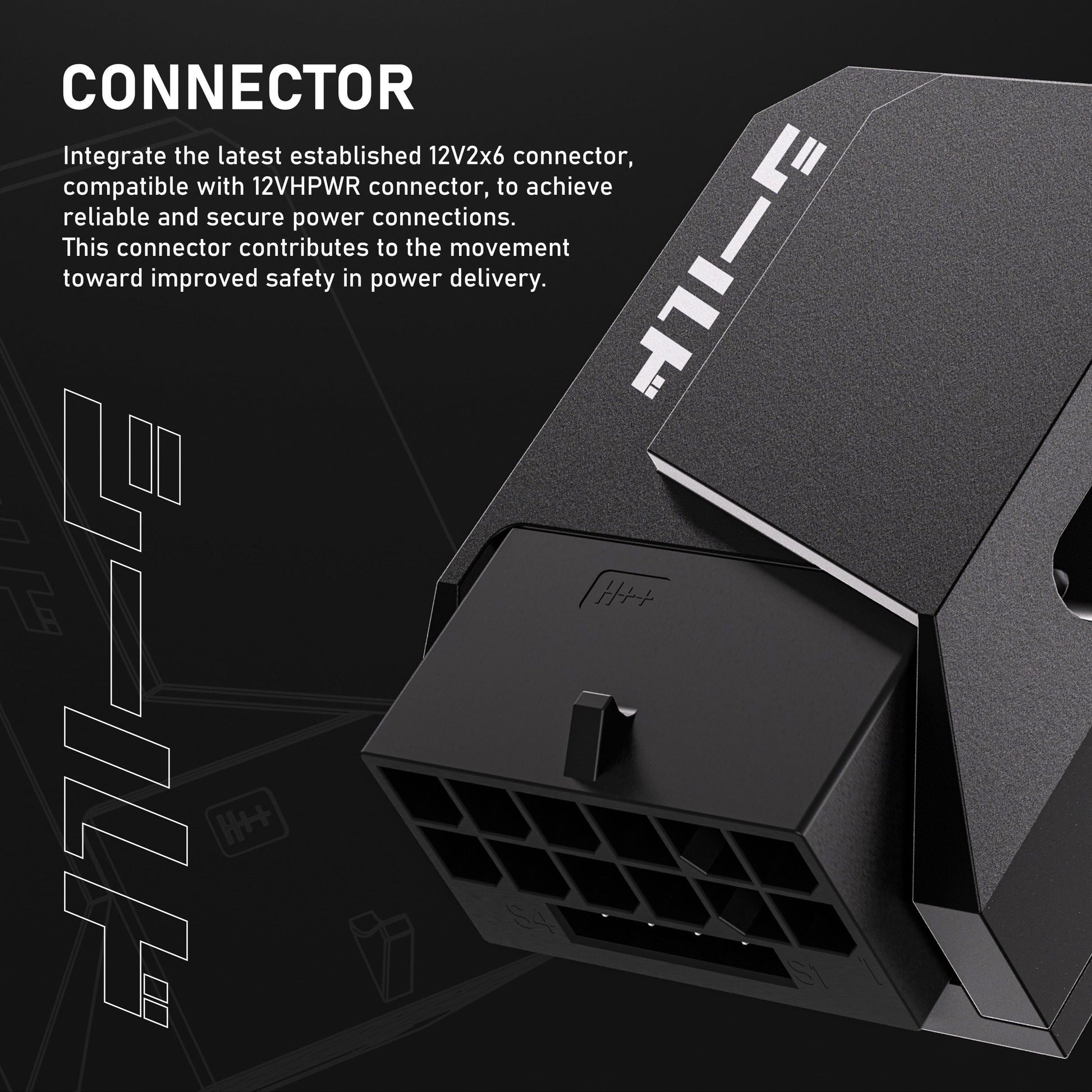

Connector: 12V-2x6 / 12VHPWR GPU power connection.
Angle: 90° right-angle routing.

Compatibility Guidance

Compatibility depends on the exact GPU model, power-socket orientation, GPU shroud/backplate clearance, case side-panel clearance, and cable-routing space. Do not choose only by GPU brand.

Important RTX 5090 notice: This SHIELD angle adapter model is not intended for RTX 5090. For RTX 5090 builds, choose only EZDIY-FAB products explicitly labeled RTX 5090 Compatible.

Installation Checklist

Turn off the PC and disconnect AC power before installation.
Confirm the STD orientation matches the GPU socket.

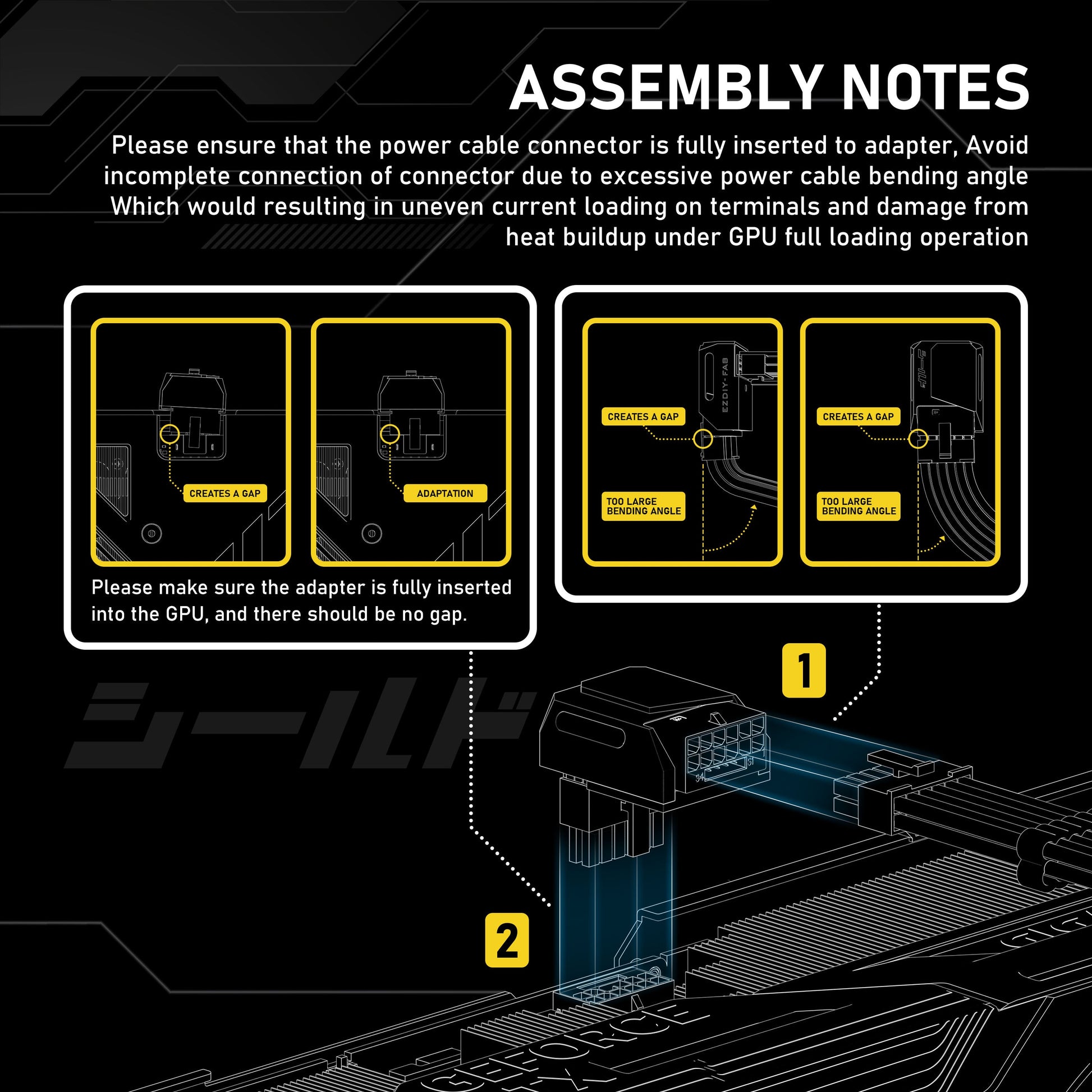

Insert the connector fully and evenly; do not force it if alignment is incorrect.
Confirm the adapter and cable are not under sideways pressure from the case panel.
After installation, visually confirm the connector remains fully seated.
